Time relays RPC-.MB-...

Technical info





RPC-1MB-...

RPC-2MB-...

Number and type of contacts

1 CO

2 CO

Rated load

AC1

16 A / 250 V AC

8 A / 250 V AC

DC1

16 A / 24 V DC

8 A / 24 V DC

DC1

0,3 A / 250 V DC

0,3 A / 250 V DC

Input rated voltage

50/60 Hz AC

230 V         terminals A1, A2

AC: 50/60 Hz AC/DC

12...240 V         terminals (+)A1, (-)A2

Time ranges

OFF - permanent switching off; ON - permanent switching on 1 s ❹; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d

Timing adjustment

smooth - (0,1...1) x time range (does not refer to range ON / OFF)

 Time functions:

  • E - ON delay
  • Wu - ON for the set interval
  • Bp  - Symmetrical cyclical operation pause first
  • Bi   - Symmetrical cyclical operation pulse first
  • Ra  - OFF delay with the control contact S, without the interval T extension
  • Wst - ON for the set interval by closing the control contact S, with extension of the interval T - extension of the time of switching on the output relay R
  • Wi -  ON for the set interval controlled by closing of the control contact S, with the function of switching off the output relay R prior to the lapse of the interval T
  • Esf - ON delay with the control contact S, without the interval T extension
  • Esp - ON delay - one cycle, with closing of the control contact S
  • Est - ON delay with closing of the control contact S, with the interval T extended
  • ON / OFF - Permanent switching on / off

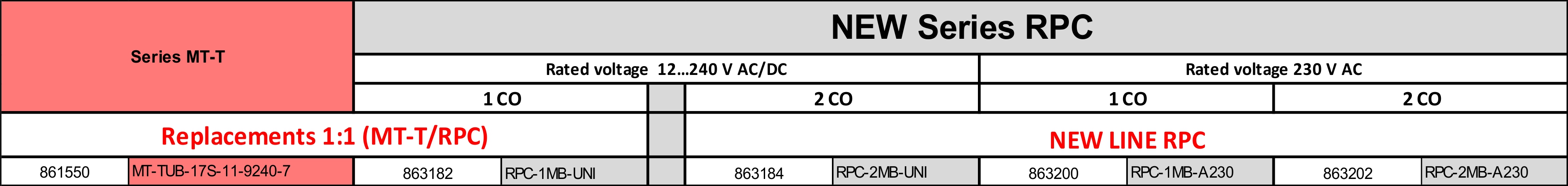

Replacements for relay MT-TUB-17S-11-9240-7

eRPC-MB

Tables of equivalents of MT-T  - Download

Download the RPC user manual
