Time relays RPC-1SA-...

Technical info

RPC-1SA-... Time function - SA - ON for the set intervals T1 and T2 with the control contact S. Independent settings of T1 and T2 intervals.

Number and type of contacts

1 CO

Rated load

AC1

16 A / 250 V AC

DC1

16 A / 24 V DC; 0,3 A / 250 V DC

Rated voltage

50/60 Hz AC

230 V       terminals A1, A2

AC: 50/60 Hz AC/DC

12...240 V         terminals (+)A1, (-)A2

Time ranges

OFF - permanent switching off; ON - permanent switching on 1 s ❺; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d

Timing adjustment

smooth - (0,1...1) x time range (does not refer to range ON / OFF)

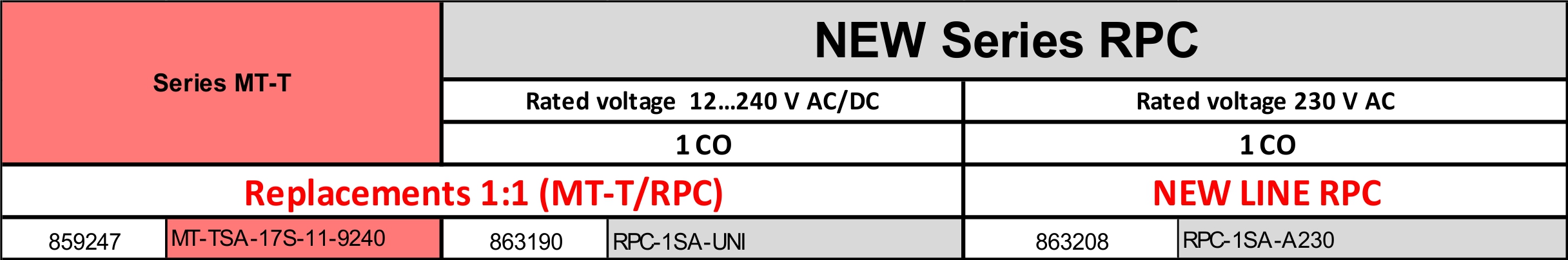

 Replacements for relay MT-TSA-17S-11-9240

eRPC-SA

Tables of equivalents of MT-T  - Download

Download - RPC-1..-... Manual
