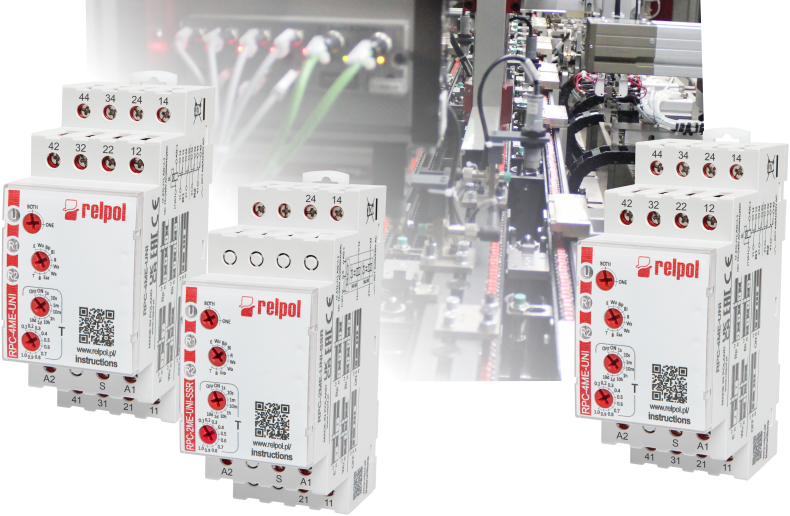

RPC series time relays 4 relay outputs or 2 triac outputs
RPC series time relays 4 relay outputs or 2 triac outputs
Multifunctional time relays with universal supply voltage of 12...240 V AC/DC
-
4 relay outputs RPC-4ME-UNI
or - 2 triac outputs RPC-2ME-UNI-SSR
RPC-4ME-UNI - More
- Cadmium - free contacts 2 x 2 CO (2 operation modes of relays R1 and R2: 2 time-delayed contacts + 2 instantaneous contacts or 4 time-delayed contacts)
- Rated load AC1 - 6A/230 V AC
- Min. switching current - 10 mA
RPC-2ME-UNI-SSR - More
- Triac outputs (2 operation modes of relays R1 and R2: 1 time-delayed output + 1 instantaneous output or 2 time-delayed outputs)
- Rated load AC1 - 2A/230 V AC
- Max. inrush current - 120 A (1 cykle na 10 ms)
Full offer of time relays - Here
