Time relays RPC-.WU-...

Technical info

RPC-.WU-... Time functions: Wu - ON for the set interval.

Number and type of contacts

 1 CO

2 CO

Rated load

AC1

16 A / 250 V AC

8 A / 250 V AC

DC1

16 A / 24 V DC

0,3 A / 250 V DC

8 A / 24 V DC

0,3 A / 250 DC

Input rated voltage

50/60 Hz AC

230 V         zaciski A1, A2

 AC: 50/60 Hz AC/DC

12...240 V         zaciski (+)A1, (-)A2

Time ranges

OFF - permanent switching off; ON - permanent switching on 1 s ; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d

Timing adjustment

smooth - (0,1...1) x time range (does not refer to range ON / OFF)

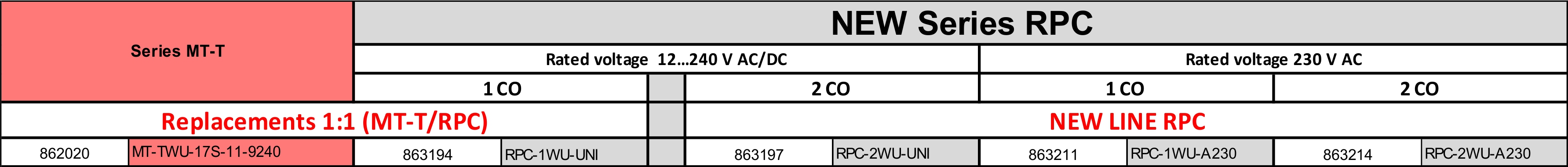

Replacements for relay MT-TWU-17S-11-9240

eRPC-WU

Tables of equivalents of MT-T  - Download

Download the RPC user manual
