Single-function time relays with independently controled times T1 and T2. Time function: EA. Max. breaking capacity AC1 4000 VA; Max. switching voltage AC - 300 V.
Technical info
RPC-1EA-... Time function: EA - OFF delay and breaking time delay with opening of the control contact S. Independent settings of T1 and T2 intervals.
| Number and type of contacts |
1 CO |
|||||||
| Rated load |
AC1 |
16 A / 250 V AC |
||||||
| DC1 |
16 A / 24 V DC; 0,3 A / 250 V DC |
|||||||
| Rated voltage |
50/60 Hz AC |
230 V terminals A1, A2 |
||||||
| AC: 50/60 Hz AC/DC |
12...240 V terminals (+)A1, (-)A2 |
|||||||
| Time ranges |
OFF - permanent switching off; ON - permanent switching on 1 s ; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d |
|||||||
| Timing adjustment |
smooth - (0,1...1) x time range (does not refer to range ON / OFF) |
|||||||

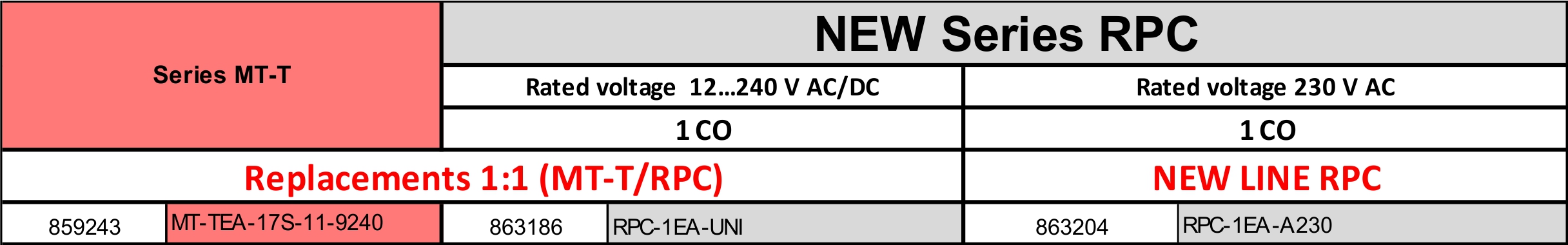

Replacements for relay MT-TEA-17S-11-9240
Tables of equivalents of MT-T - Download
