High-power relays R50A and R90A

The R50A and R90A high-current relays are designed for applications in photovoltaic systems, solar inverters, AC chargers, power supplies and UPS systems. These relays provide reliable operation, high durability. They are suitable for PCB mounting. They are relays with high switching current, large contact gap and insulation class F: 155 °C. The coil holding voltage of these relays can be reduced to 50-75% of the rated coil voltage, providing exceptional energy savings.

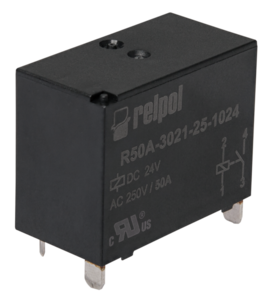

Relay R50A

R50A-3021-25-1024

  • Maximum switching current: 50 A
  • Contact gap: ≥ 2 mm
    DC coils: Class F insulation (155°C)
  • PCB mounting: Designed for printed circuit boards
  • Number of contacts: 1NO
  • Contact material: AgSnO2
  • Rated contact voltage: 250 V / 277 V AC
  • Maximum switching power in AC1 category: 13,850 VA
  • Engagement/return time: 20 ms / 10 ms
  • Mechanical life: 1,000,000 cycles
  • Dimensions: 30.1 x 15.7 x 23.3 mm
  • Operating temperature range: -40...+85°C

    Download data sheet

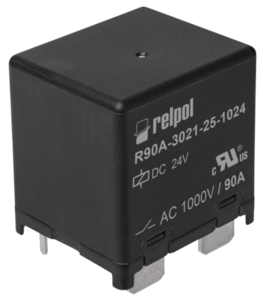

Relay R90A

R90A-3021-25-1024

  • Maximum switching current: 90 A
  • Contact gap: ≥ 4 mm
  • DC coils: Class F insulation (155°C)
  • Compliance with standards: IEC 62109, VDE 0126
  • Number of contacts: 1NO
  • Contact material: AgSnO2
  • Rated contact voltage: 1 000 V AC
  • Maximum switching capacity in category AC1: 100 000 VA
  • ON/OFF time: 30 ms / 10 ms
  • Mechanical life: 1,000,000 cycles
  • Dimensions: 38 x 33 x 36.3 mm
  • Operating temperature range: -40...+85°C

    Download data sheet
